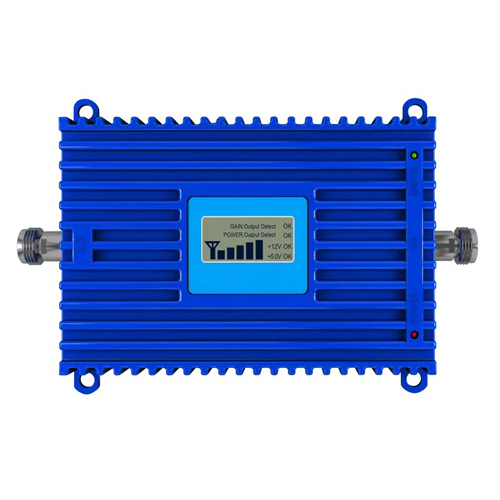

Single-Band 2300 MHz LTE High Gain 23 dBi Signal Booster: Comprehensive Information
Overview
The Single-Band 2300 MHz LTE High Gain 23 dBi Signal Booster is designed to amplify mobile signal strength specifically for the 2300 MHz frequency band. This booster is ideal for enhancing 4G LTE signals, ensuring better call quality, faster data speeds, and improved overall connectivity in areas with weak signal reception. It is perfect for residential and commercial use, providing robust coverage for homes, offices, and other spaces.
Key Features
- Frequency Band Support: Specifically designed to amplify the 2300 MHz (Band 40) frequency band.
- High Gain: Delivers up to 23 dBi gain, significantly boosting signal strength.
- Enhanced 4G LTE Performance: Optimized for 4G LTE, providing faster data speeds and better voice call quality.
- Wide Coverage Area: Capable of covering large areas, suitable for both residential and commercial applications.
- Automatic Gain Control (AGC): Automatically adjusts the gain to optimize signal performance and prevent interference.
- Easy Installation: Comes with all necessary components and a straightforward installation process.
- Durable Design: Built with high-quality materials for long-lasting performance and reliability.
Technical Specifications
- Frequency Band:
- 2300 MHz (Uplink: 2300-2400 MHz, Downlink: 2300-2400 MHz)
- Gain: Up to 23 dBi
- Impedance: 50 Ohms
- Maximum Output Power: 23 dBm
- Noise Figure: ≤ 6 dB
- Power Supply: Input AC 100-240V, Output DC 12V/3A
- Connector Type: N-Female
- Dimensions: 310 x 220 x 60 mm (L x W x H)
- Weight: 2.2 kg
Benefits
- Enhanced Signal Strength: Substantially improves weak signals for better connectivity and performance.
- Support for Multiple Devices: Allows multiple users and devices to benefit from enhanced signal strength simultaneously.
- Improved Battery Life: Reduces the power consumption of mobile devices by providing a stronger signal, thereby extending battery life.
- Reliable Performance: Ensures stable and reliable signal enhancement in various environments, including urban, suburban, and rural areas.
Installation Guide
- Choose the Location: Identify a location with the strongest signal for the external antenna (typically on the roof or an outside wall).
- Mount the External Antenna: Secure the external antenna in place, aiming it towards the nearest cell tower.
- Connect the External Antenna: Use the provided coaxial cable to connect the external antenna to the signal booster.
- Position the Signal Booster: Install the signal booster inside the building in a central location.
- Attach the Internal Antenna: Connect the internal antenna to the signal booster and place it in the area where improved signal is needed.
- Power On: Connect the power supply to the signal booster and plug it into a power outlet.
- Optimize Setup: Adjust the positioning of the antennas and booster for optimal signal performance. Check signal strength and make necessary adjustments.
Applications
- Homes: Enhances signal strength in residential areas with weak reception.
- Offices: Provides reliable connectivity in office buildings and workspaces.
- Commercial Buildings: Ideal for use in shopping malls, hotels, and other large commercial properties.
- Remote Locations: Effective in rural and remote areas where signal strength is typically weak.
Conclusion
The Single-Band 2300 MHz LTE High Gain 23 dBi Signal Booster is an excellent solution for enhancing mobile signal strength in the 2300 MHz frequency band. Its high gain ensures significant signal improvement, leading to better connectivity, improved call quality, and faster data speeds. With easy installation and a durable design, this signal booster is a reliable choice for both residential and commercial environments.
This comprehensive guide provides users with detailed information on the benefits, technical specifications, installation process, and applications of the Single-Band 2300 MHz LTE High Gain 23 dBi Signal Booster, making it an ideal choice for enhancing mobile connectivity in specific frequency bands.
